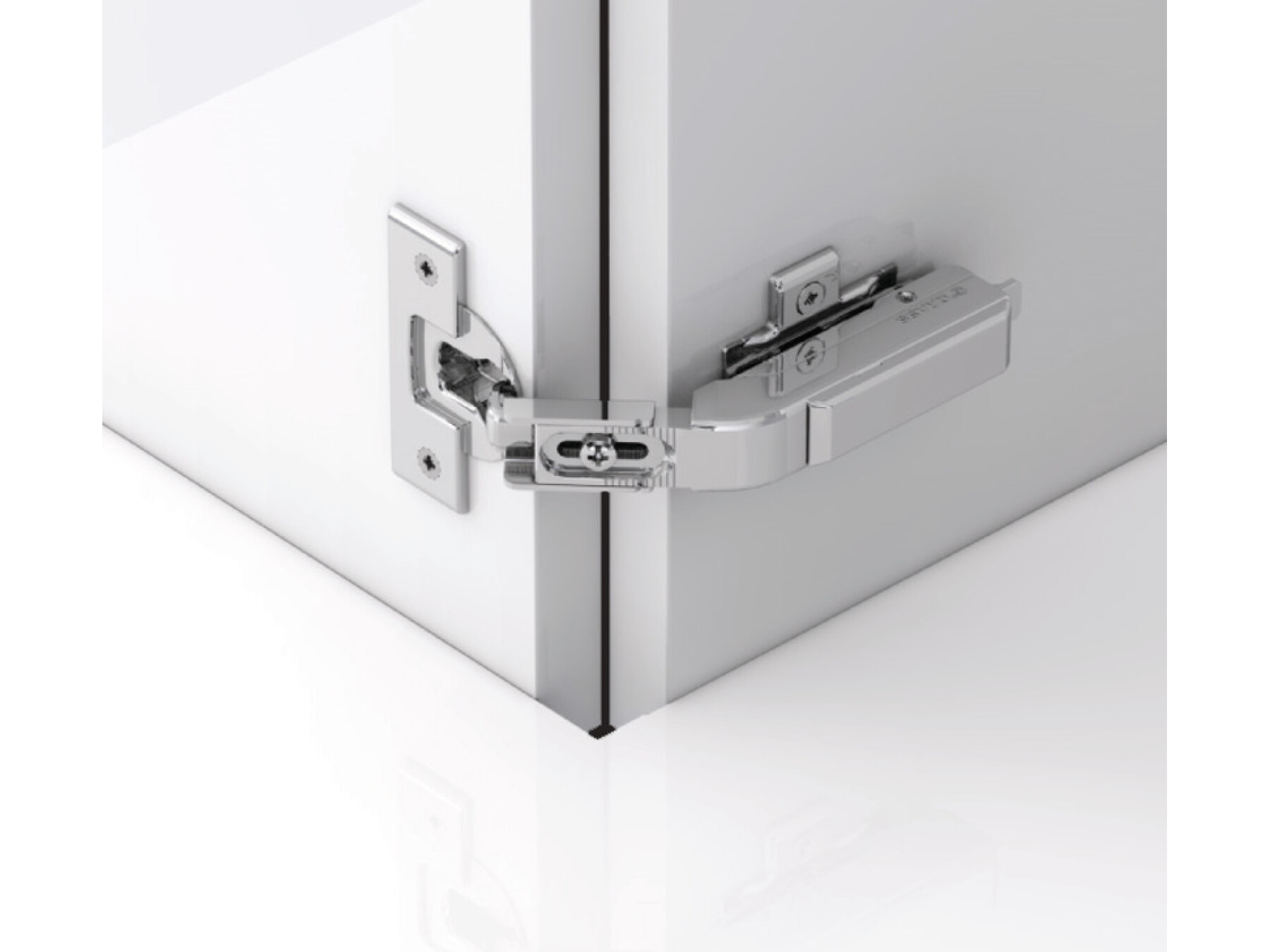

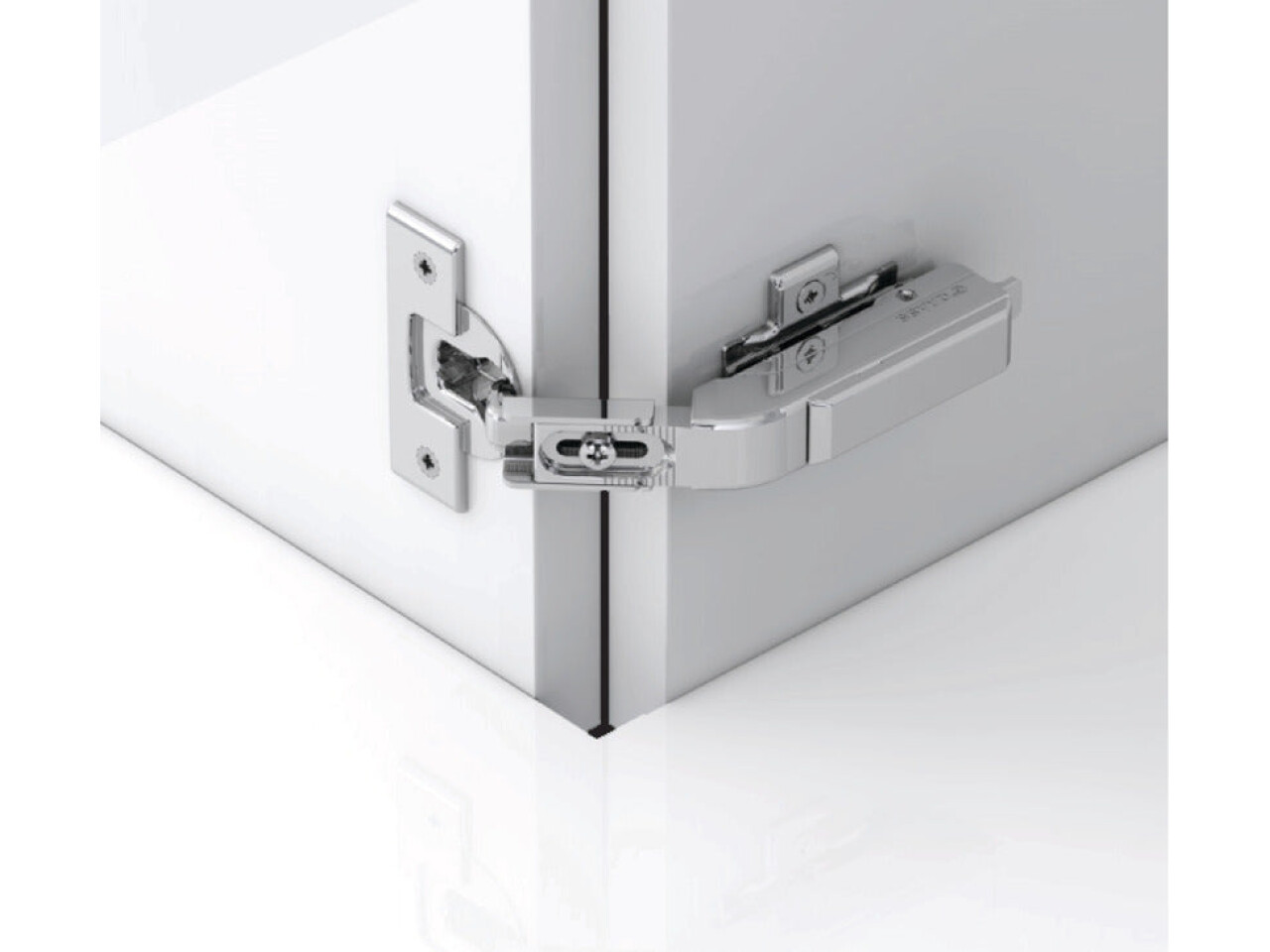

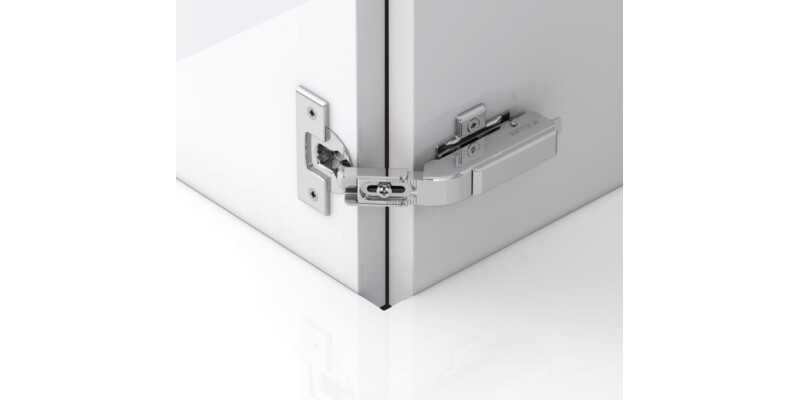

Concealed Cup Hinge, Pie-Cut Corner Hinge, with Full-Cup Drill Hole, Tiomos Pcc (Part No: 348.29.600) is a precision-engineered concealed cabinet hinge designed for reliable, clean door alignment in corner cabinet applications. If you’re fitting corner doors and need a dependable hinge connection without the soft-close feature, this screw-fix hinge is a smart, practical choice for both living and commercial furniture projects.

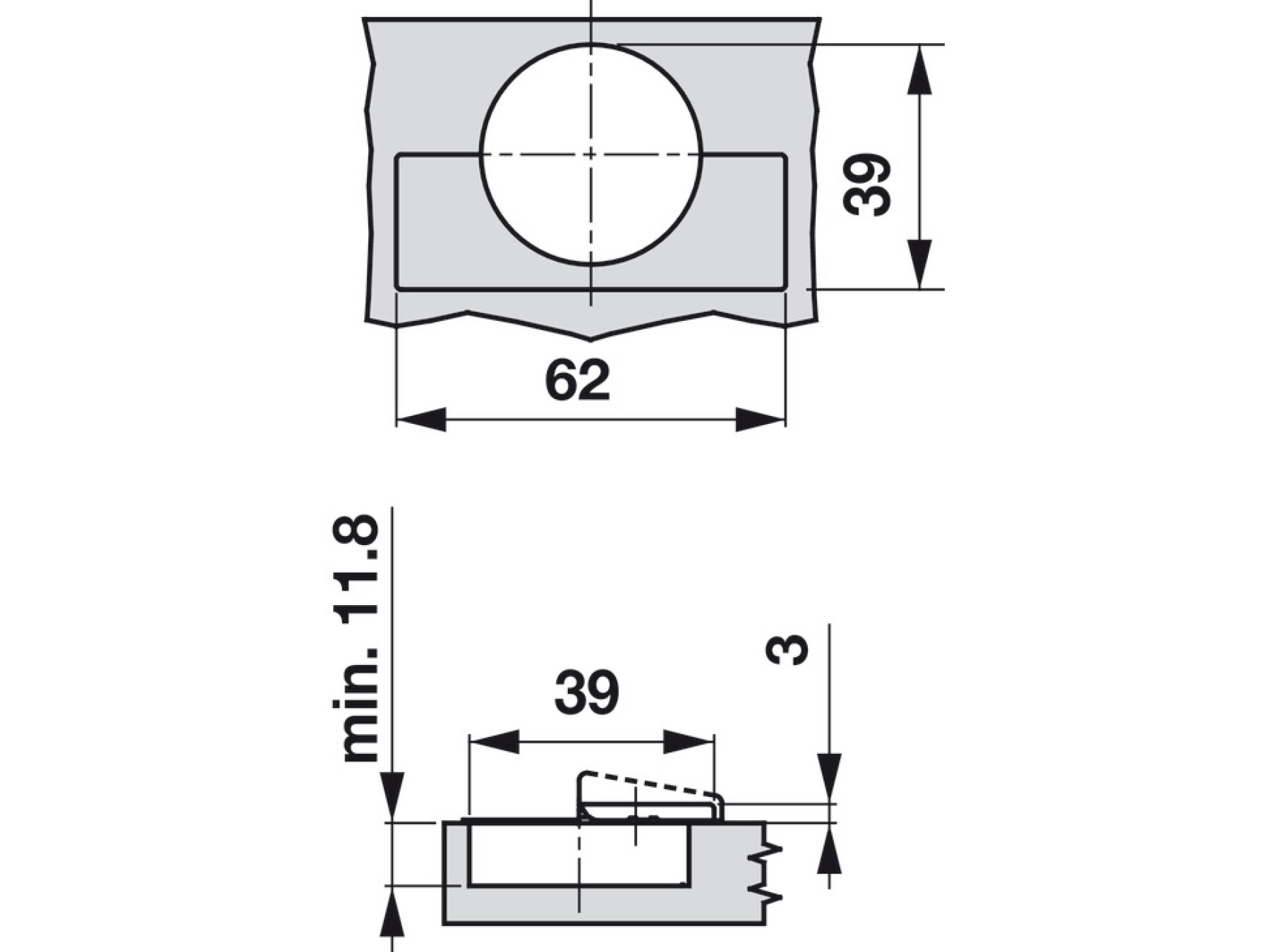

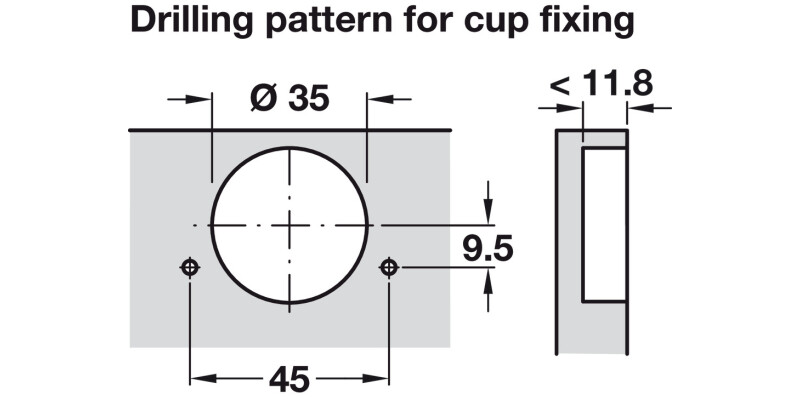

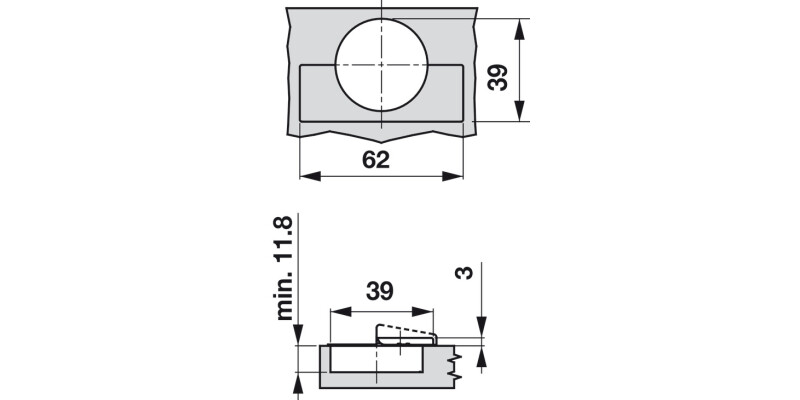

Designed for corner cabinet doors, this hinge supports straightforward installation with cup drilling included for easy assembly. The cup drilling depth of 11.80 mm and cup diameter of 35.00 mm make it well-suited to standard concealed hinge preparations, helping you achieve a professional finish with minimal fuss.
Functionality without soft closing: this model operates smoothly without a soft-close mechanism—ideal for customers who prefer a direct, positive door closing feel.

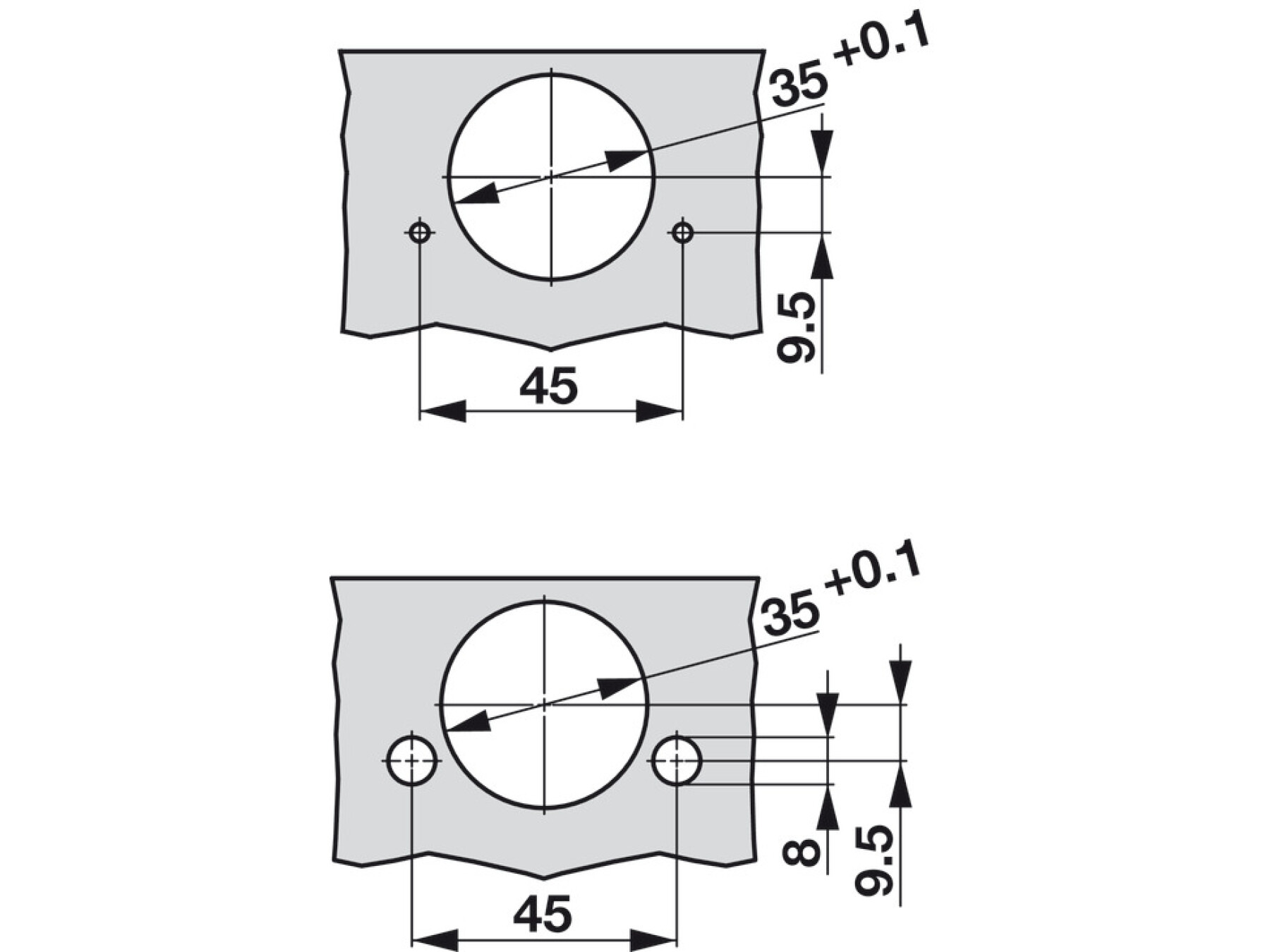

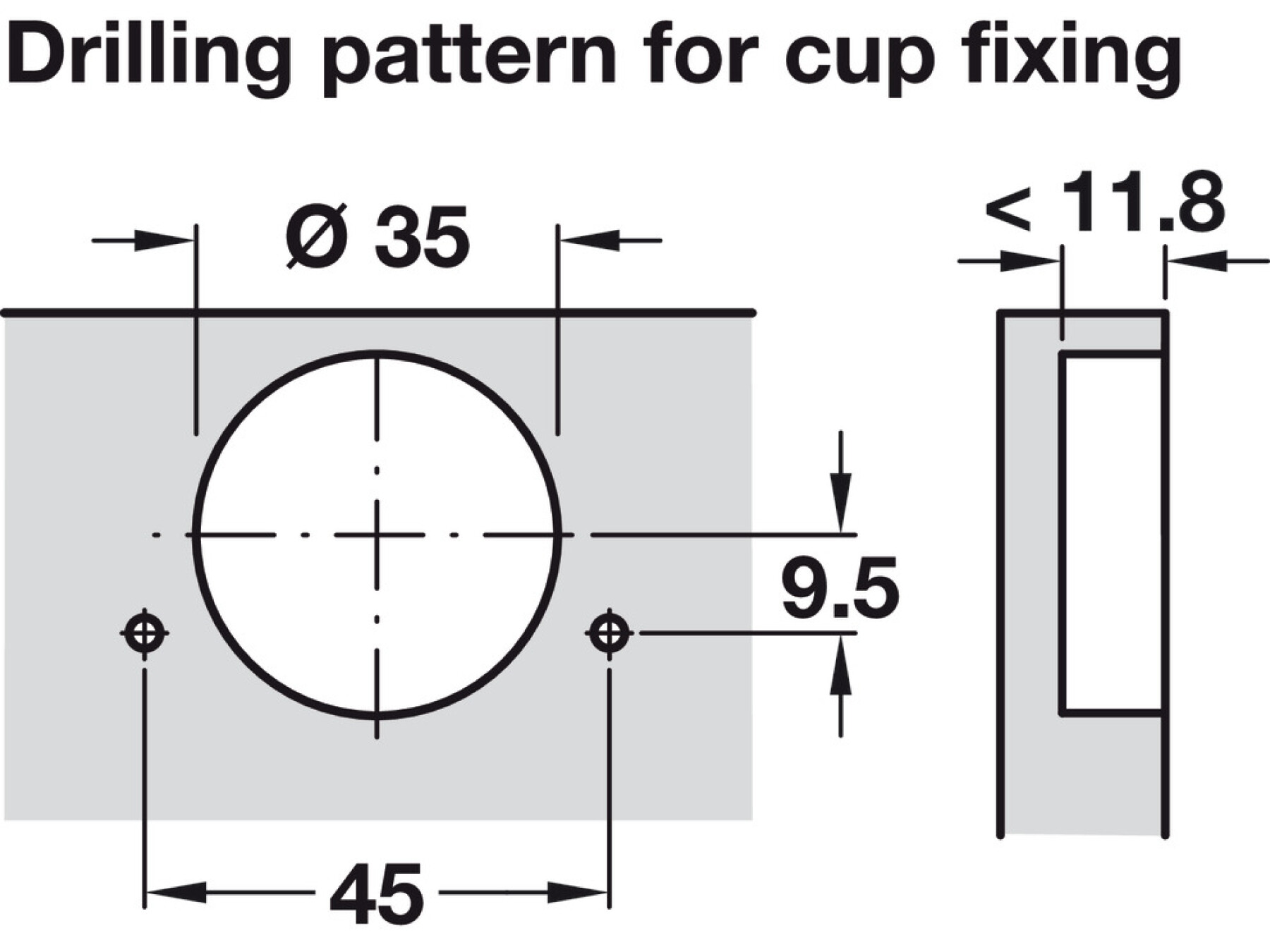

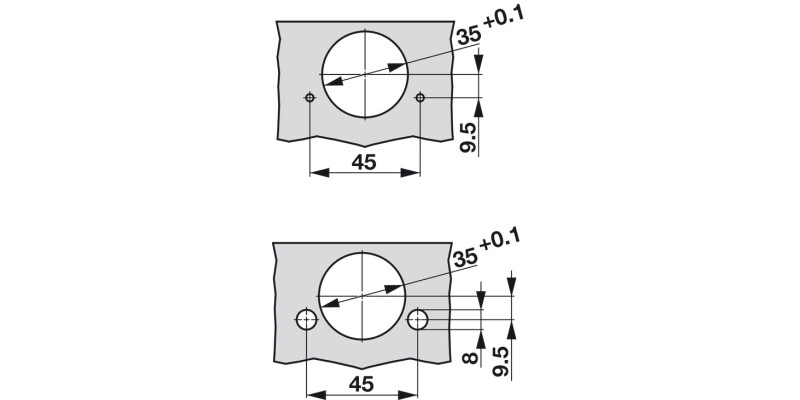

Built for strength and everyday use, the hinge is made from zinc alloy. It features a straight crank type and a drilling pattern of 45/9.5, making it versatile for compatible furniture designs.

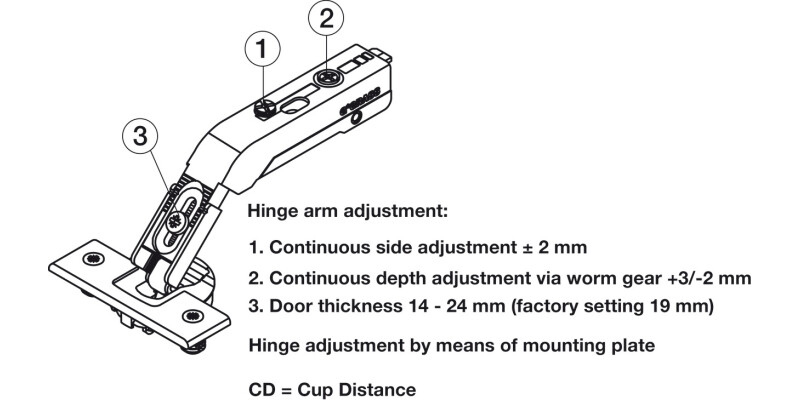

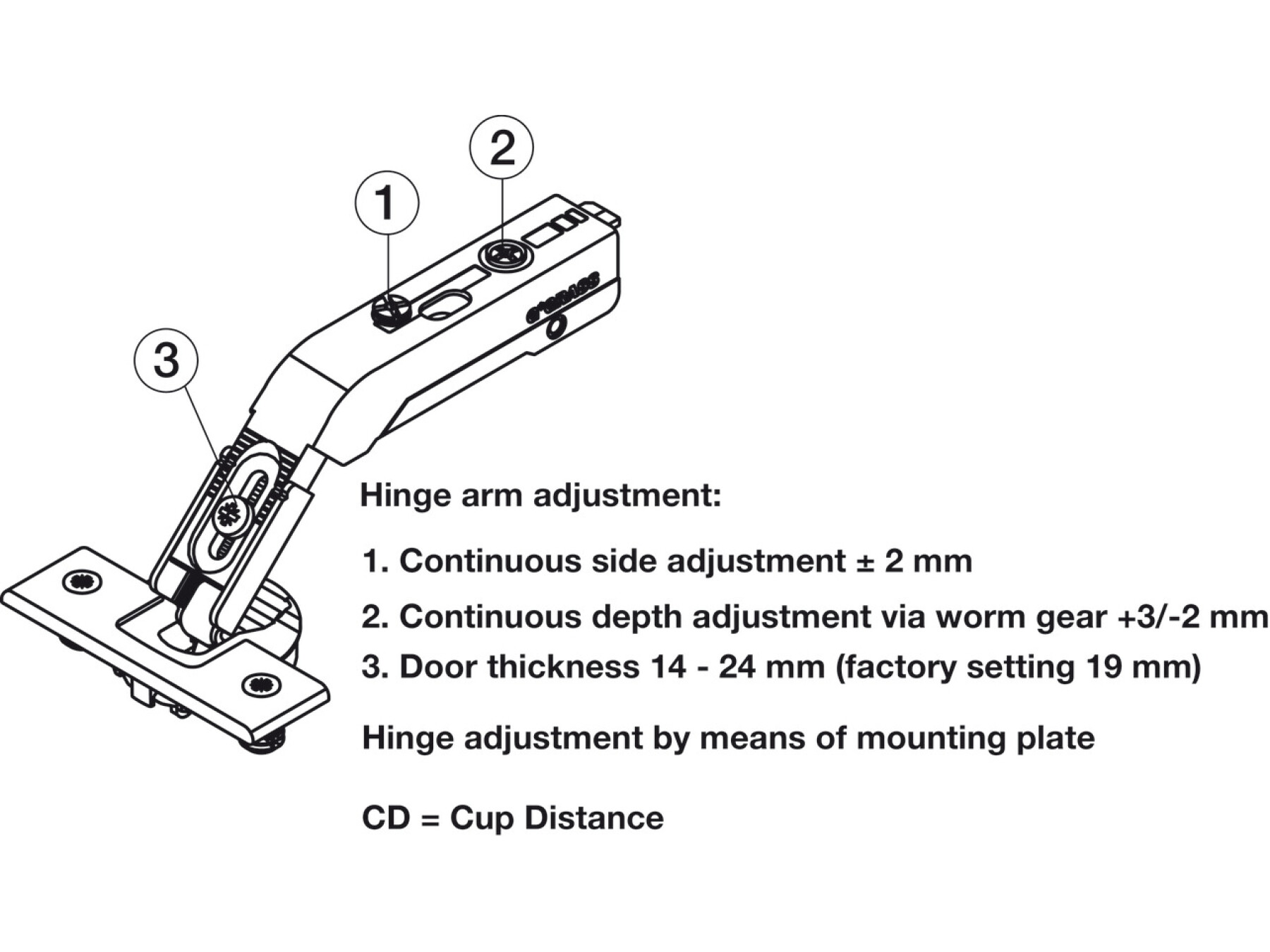

Installation is screw fixing only, with cup fixing for screw fixing. Enjoy 3-dimensional adjustment using the appropriate mounting plate, allowing you to fine-tune door alignment for a neat, even gap around the doors.
Tip: Order reference notes that Ø 3.5 mm countersunk screws must be ordered separately (HOSPA). Choose the Concealed Cup Hinge, Pie-Cut Corner Hinge, with Full-Cup Drill Hole, Tiomos Pcc for dependable concealed corner-door performance you’ll feel every time you open and close.
Order Hospa Ø 3.5 mm countersunk screws separately
